High Pressure Electric Steam Boilers & Generators
General Boiler Co Inc manufactures a full range of electric steam boilers and generators designed for industrial applications. Our units range from 20 to 500 kW and operate at pressures from 15 to 250 PSI.
Available in both Carbon Steel and All Stainless Steel construction, our electric boilers deliver clean, efficient steam without the need for fuel storage, chimneys, or emissions permits.
Five Electric Boiler Configurations
Vertical or horizontal, carbon steel or all stainless, low or high pressure. Every General Boiler unit ships ANSI-ASME Sect. I BPV stamped and National Board registered.
Vertical Carbon Steel
54-180 kW · 80 PSI · Stand-alone vertical
View specs
Carbon Integral
18-72 kW · 80 PSI · Horizontal, fits under sterilizer
View specs
Horizontal All Stainless
18-72 kW · 80 PSI · Clean steam, all stainless steel
View specs
Vertical All Stainless
54-180 kW · 80 PSI · Vertical, all stainless steel
View specs
High Pressure
50-500 kW · 150-800 PSI · Carbon or all stainless

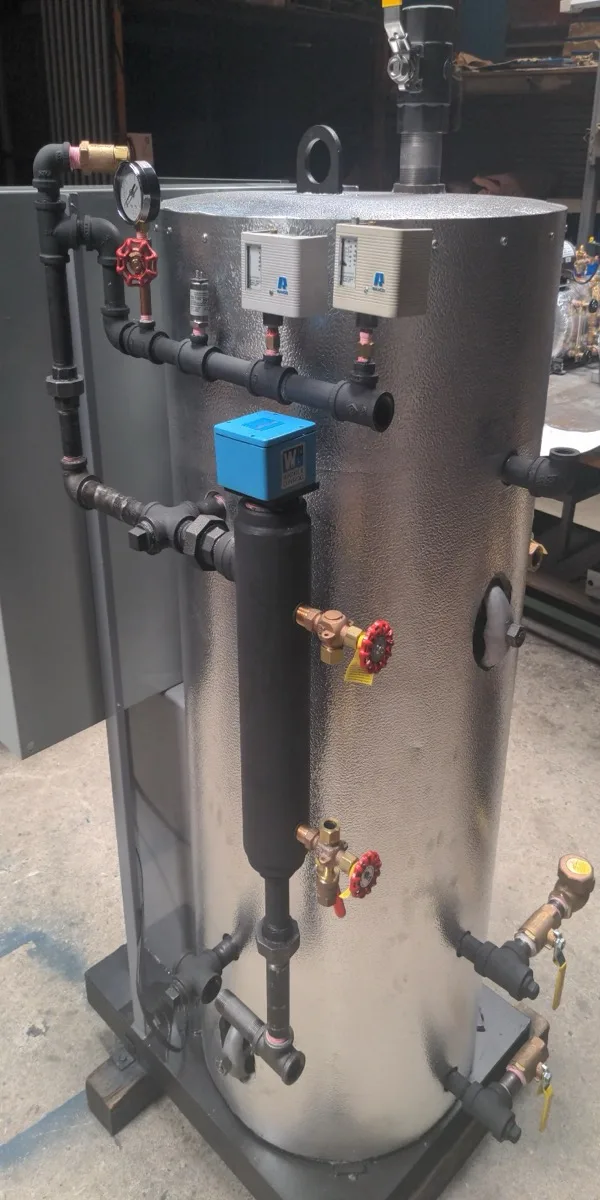

View specsVertical Carbon Steel Generators
Stand-alone vertical, 54-180 kW
Carbon steel vessel with brass and stainless piping. Available in capacities from 54 kW through 180 kW at 208, 240 or 480 Volts 3-Phase. Maximum operating pressure 80 PSI (5.5 Bar, 552 kPa).
Standard Capacities
- 54, 60, 72, 80, 96 kW
- 108, 120, 144, 160, 180 kW
- Voltages: 208 / 240 / 480 V, 3 Phase
- Add-ons: sequence controller, blowdown-drain tank, automatic-electric blowdown
Applications: labs, hospitals, surgery centers, research facilities, sterilizing.

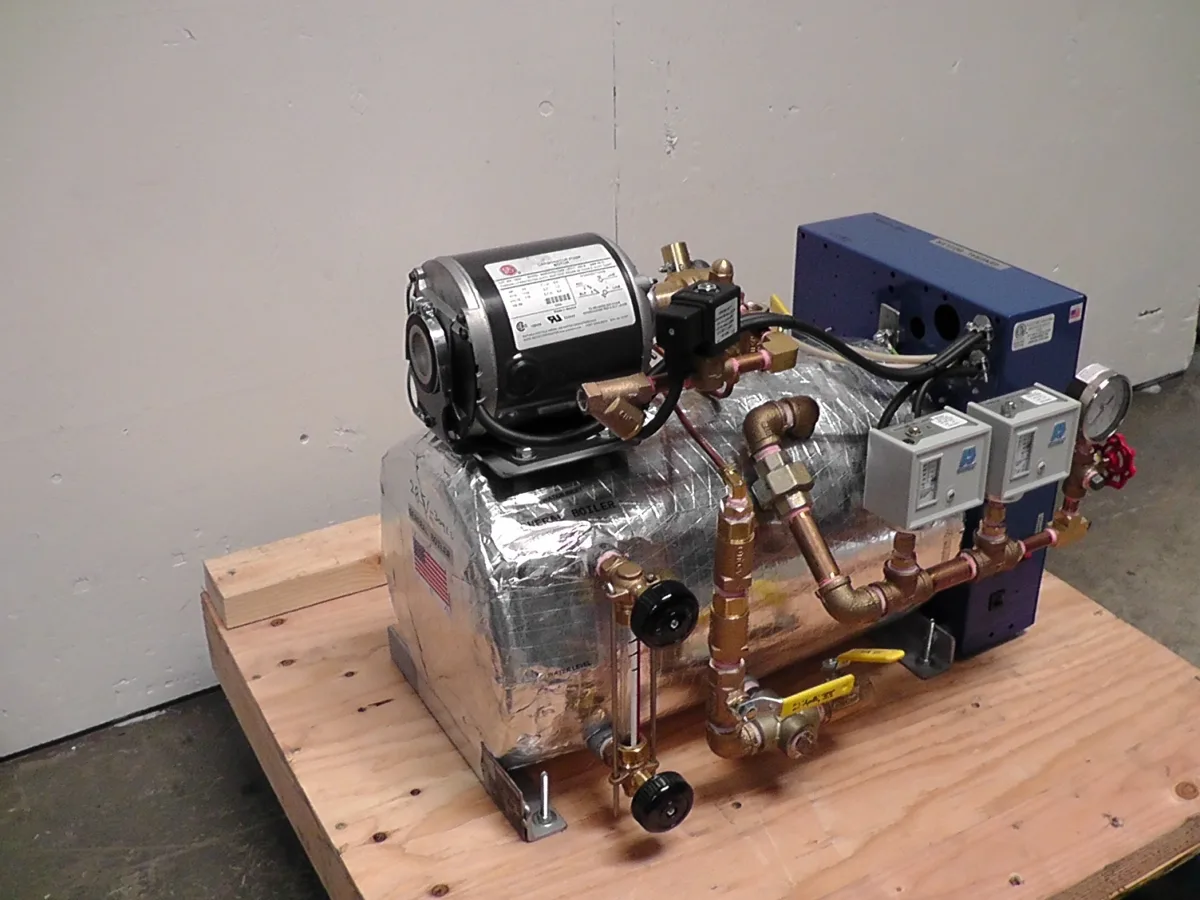

Carbon Integral Generators
Horizontal, fits under your sterilizer
Carbon steel construction with brass and stainless piping. Designed to install integral under Beta Star, AMSCO and Castle sterilizers in labs, hospitals and surgery centers. Maximum operating pressure 80 PSI (5.5 Bar, 552 kPa).
Available Sizes
- Standard: 18, 20, 24, 30 kW
- Medium: 36 kW
- Larger sizes: 40, 44, 48, 54, 60, 66, 72 kW (on request)
- Voltages: 208 / 240 / 480 V
- Optional: automatic-electric blowdown

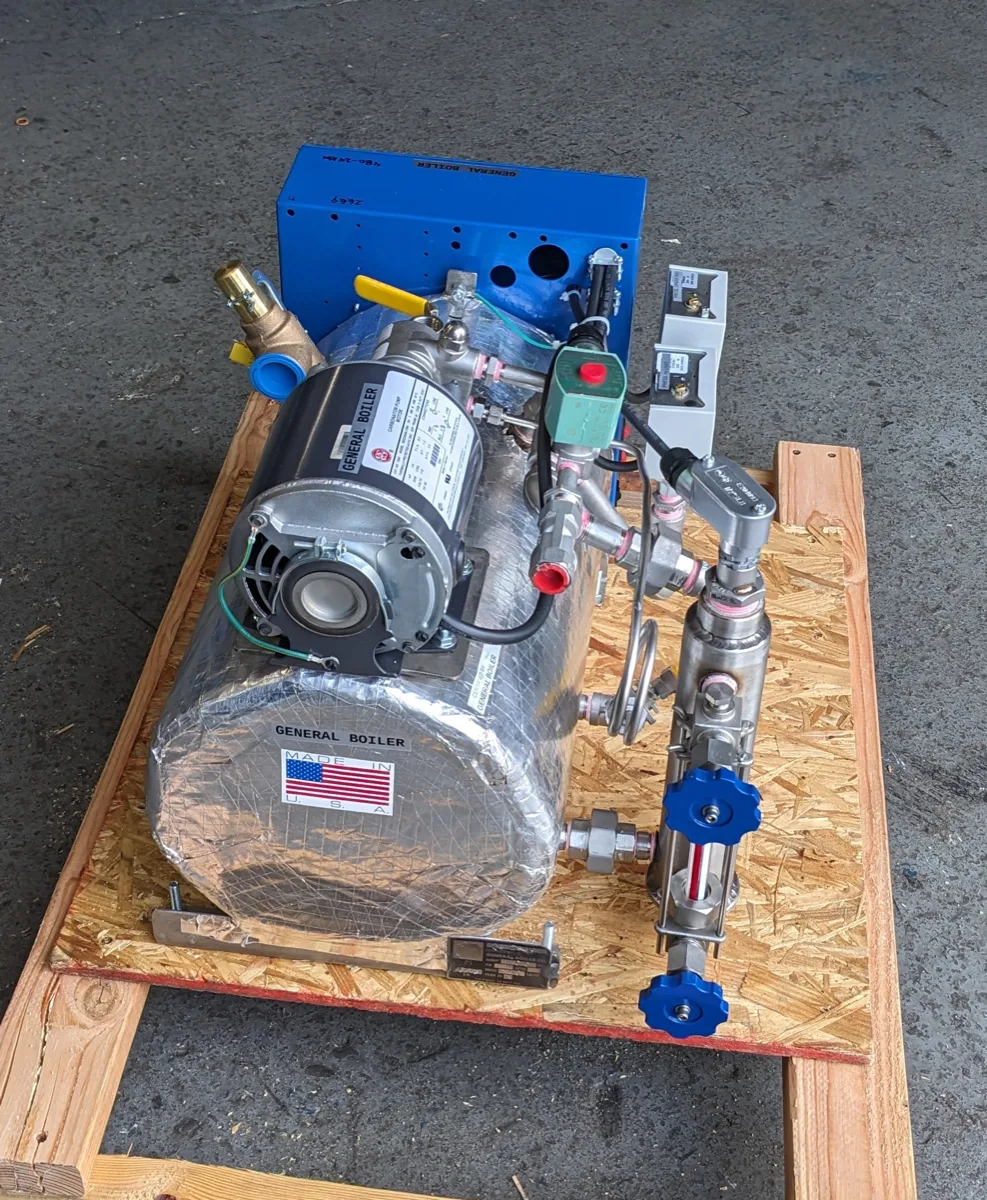

Horizontal All Stainless
Clean steam, all stainless construction
Horizontal design with all stainless steel vessel and piping. Built for clean-steam applications, labs, hospitals and surgery centers. Beta Star sterilizer integral installs supported. Maximum operating pressure 80 PSI (5.5 Bar, 552 kPa).
Available Sizes
- Standard: 18, 20, 24, 30 kW
- Medium: 36 kW
- Larger sizes: 40, 44, 48, 54, 60, 66, 72 kW (on request)
- Voltages: 208 / 240 / 480 V
- Optional: automatic-electric blowdown

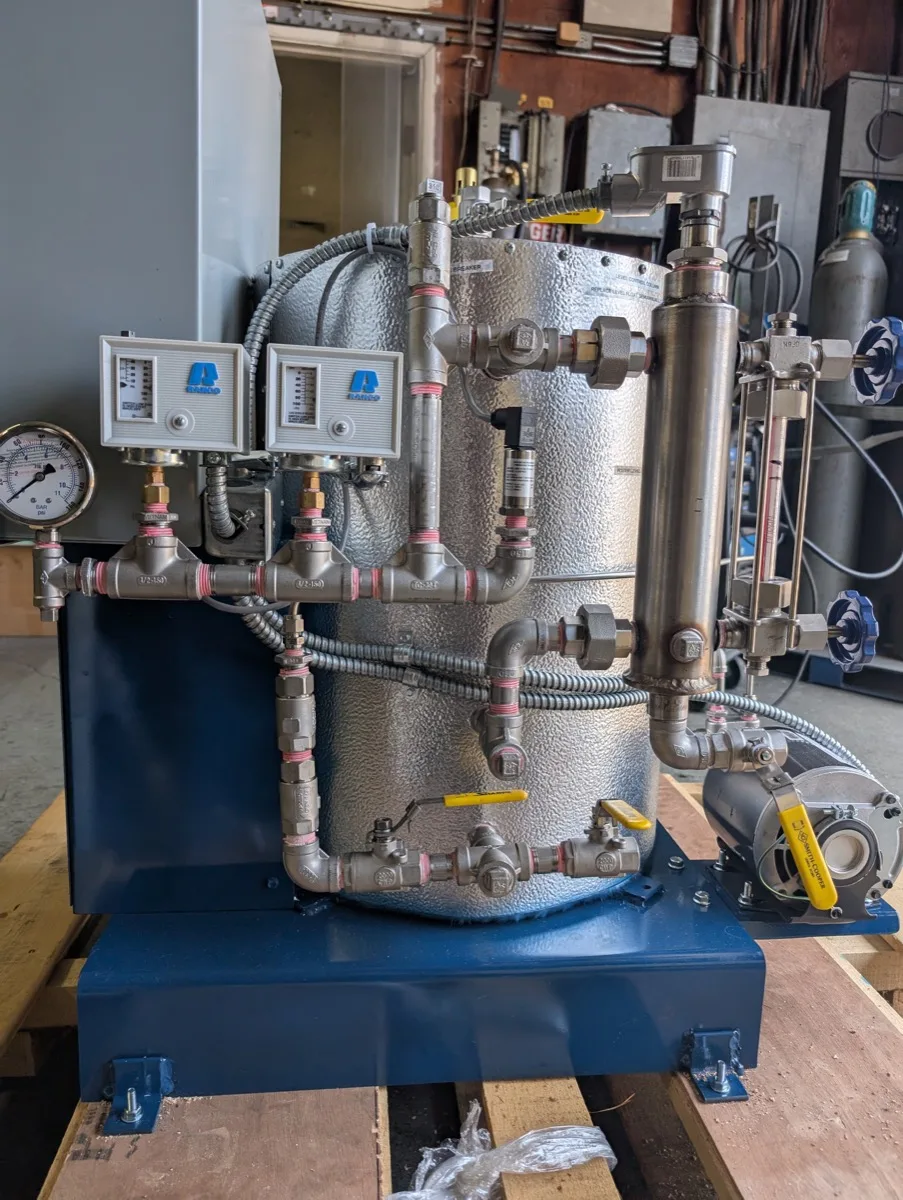

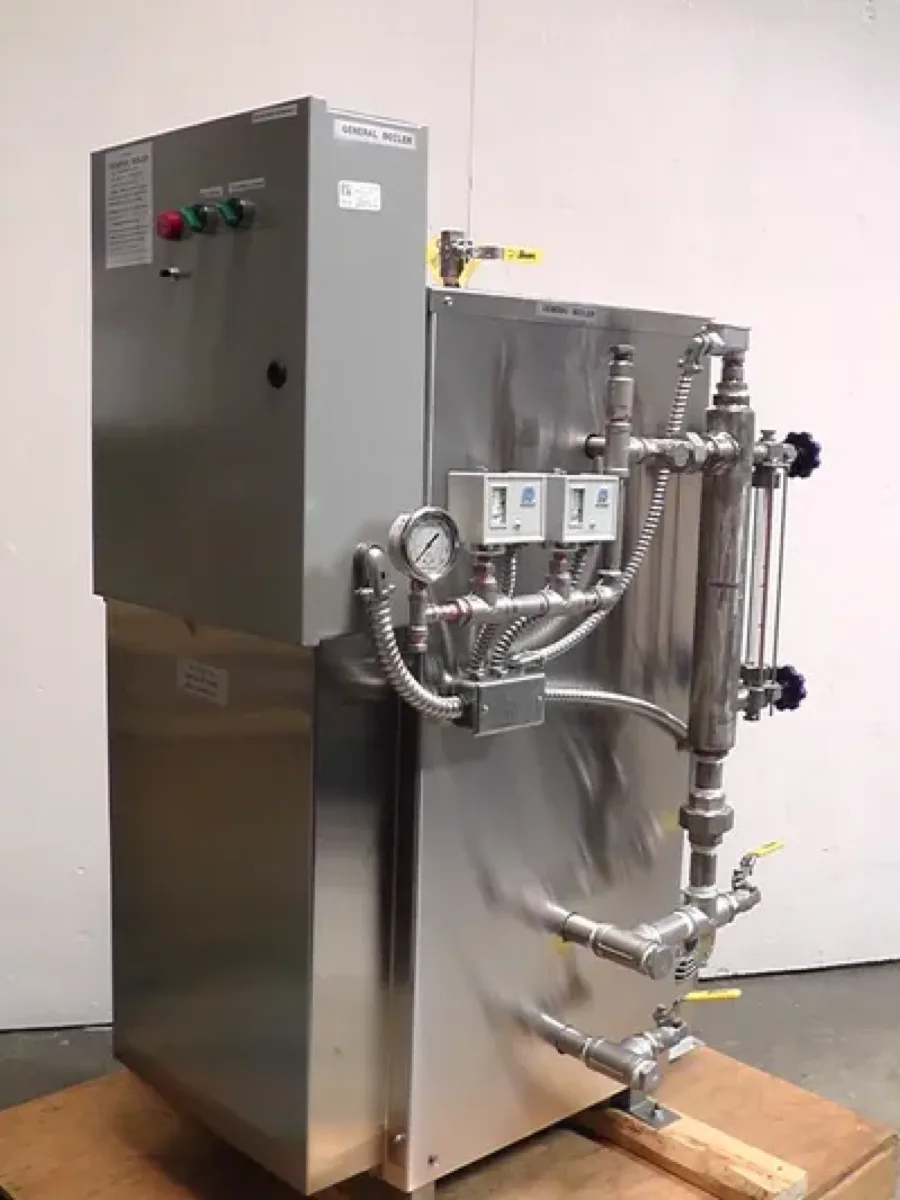

Vertical All Stainless Generators
Vertical stand-alone, 54-180 kW, all stainless
All stainless steel vessel and trim/piping. Vertical "stand alone" design from 54 kW through 180 kW at 208, 240 or 480 Volts 3-Phase. Maximum operating pressure 80 PSI (5.5 Bar, 552 kPa). Built for labs, hospitals and surgery centers requiring clean steam.
Standard Capacities
- 54, 60, 72, 80, 96 kW
- 108, 120, 144, 160, 180 kW
- Voltages: 208 / 240 / 480 V, 3 Phase
- Add-ons: sequence controller, blowdown-drain tank, automatic-electric blowdown
Featured: 144 kW Steam Generator, all stainless steel.
High Pressure Electric Boilers
150 to 800 PSI, 50-500 kW
Carbon steel and all stainless steel construction available. Horizontal and vertical designs supported. Built for industrial process applications requiring high-temperature steam.
Specifications
- Capacities: 50 through 500 kW
- Operating pressures: 150 through 800 PSI (10 Bar to 44 mPa)
- Voltages: 208 / 240 / 480 V
- Construction: Carbon Steel or All Stainless Steel
- Auxiliaries: blowdown tanks, automatic-electric blowdown
Pricing on request — Contact Sales for a custom quote.
Autoclave Steam Generators — Series GE30-36
Industrial Duty 80 PSI Operating
Compact steam generator engineered to fit under AMSCO and Castle sterilizers. Steel vessel with all brass connections; available in 304 or 316 all-stainless steel for clean-steam applications. Approximate dimensions: 16" W × 23" L × 16" H.
Capacities & Features
- 208 / 240 / 480 V at 12, 18, 20, 22, 30 or 36 kWh
- Carbon steel vessel with brass connections (standard)
- 304 or 316 all-stainless steel option for clean-steam
- Available with controls for R.O. water
- ETL · A.S.M.E. Sect. I BPV · National Board
Applications: sterilizing steam supply for labs, hospitals and medical equipment. Fits under AMSCO and Castle sterilizers.
Frequently Asked Questions
What power range is available for electric steam boilers?
+General Boiler offers electric steam boilers and generators ranging from 20 kW to 500 kW. Our vertical stand-alone models are available in multiple configurations to match your facility's power requirements and steam demand.
What pressure ratings are available for electric boilers?
+We offer three pressure ranges: Low Pressure at 15 PSI for basic heating and humidification, Medium Pressure from 30 to 100 PSI for general industrial processes, and High Pressure from 100 to 250 PSI for demanding applications requiring higher temperature steam.
What are the advantages of electric boilers over gas fired boilers?
+Electric boilers produce zero emissions at point of use, require no fuel storage or chimney, have a compact footprint, and offer precise temperature control with lower maintenance costs. They are ideal for facilities where gas supply is unavailable or where emissions restrictions apply.
Are stainless steel electric boilers available?
+Yes. General Boiler offers both carbon steel and all stainless steel construction options. Stainless steel units are recommended for applications requiring clean steam, corrosion resistance, or compliance with pharmaceutical and food-grade standards.
What applications are electric steam generators used for?
+Electric steam generators are commonly used for autoclave sterilization in medical and laboratory settings, pharmaceutical manufacturing, food processing, commercial laundry operations, and industrial heating processes where clean, reliable steam is required.
Do electric boilers require special installation?
+Electric boilers require appropriate electrical supply matching the unit's voltage and kW rating, a water supply connection, and proper ventilation. Unlike gas boilers, they do not require a flue, chimney, gas line, or fuel storage — making installation simpler and more flexible in most facilities.
Distributors Welcome, Short Lead Time
We work with distributors nationwide and offer competitive pricing with short lead times on standard models.
